Industry-specific attributes
ice shape

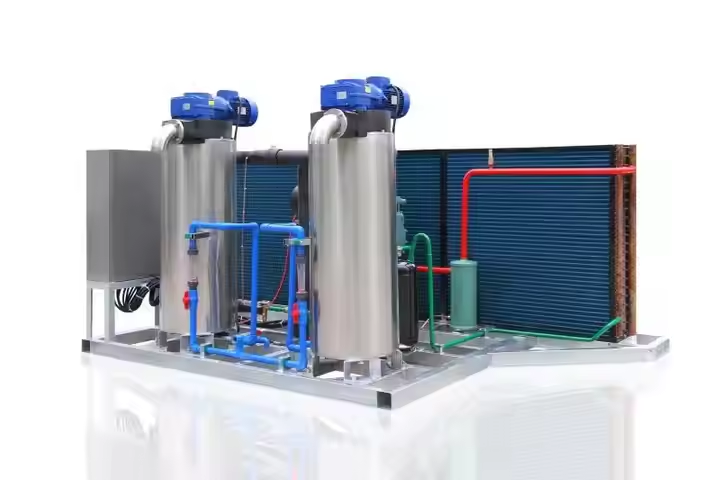

Slurry Ice
voltage
220V, 380V
ice storage capacity
20KG
application
Commercial
Other attributes
warranty
1 Year
compressor brand
Bristol, Refcomp
power
35kw
Weight (KG)
500
place of origin
Foshan
brand name
Fomax
dimension(l*w*h)
1900*1600*1600
key selling points
High-accuracy, Automatic
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing, Gear, Pump, Gearbox, motor
Refrigerant
r404a, R22a
Packaging and delivery
Selling units
Single item
Single package size
200X100X100 cm
Single gross weight
200.000 kg

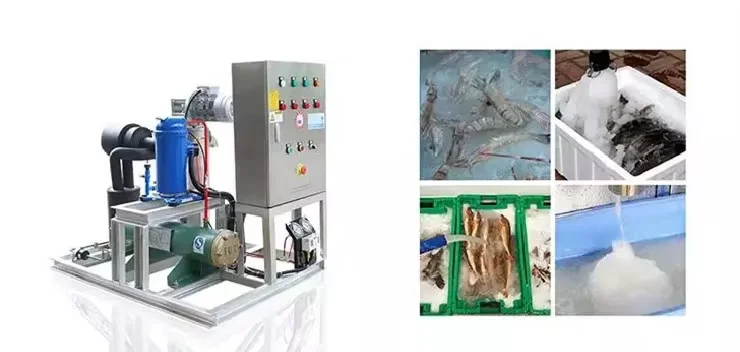

1.Slurry ice is a unique chilling medium and is formed out of seawater of a mixture of fresh water and salt. The microscopic crystals form a suspension in seawater in any required concentration.
2.Slurry ice completely covers the fish, chilling the fish instantly and the greater chilling characteristics of up to 15 to 20
times better than that of conventional block ice.
3.Chilling the catch as rapid as possible and keeping the fish at -1ºC to -2ºC as long as possible.
4.As the ice crystal leave the fish in a soft bed, this kind of slurry ice does not damage the fish.
Can be pumped at a concentration from 20% to 50% and easy to distribute and handle which increases productivity and flexibility.
5.This kind of machine can also be used as high efficient sea water cooler.
Slurry ice freezing is a method for rapidly freezing food in which the food is wrapped with liquid fine ice to avoid damaging it.
Ice has 60 times or more cold energy of liquid.
Slurry ice is a mixture of liquid and ice that has this high cold energy; thus, it has a more significant cooling capacity than
normal liquid.

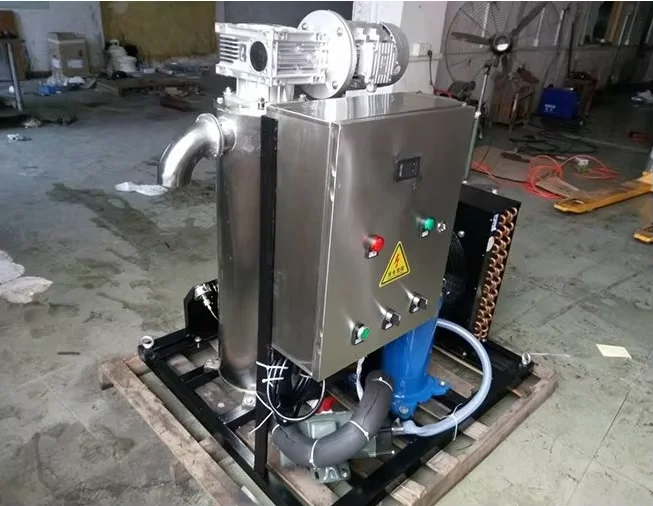

Microcomputer Intelligent Control: the machine is using PLC Control System with world famous brand components. Meanwhile it can
protect the machine when there are water shortage, ice full, high/low pressure alarm, and motor reversal.
Equipment Features
1. Super cooling
In all known artificial ice species, the area of contact and heat transfer between the liquid ice and the cooled object reaches almost 100%, covering the target product in all aspects.So as to achieve the normal refrigeration mode of 3-5 times the excellent refrigeration effect.
2. Very controllable
Unlike several other types of solid ice, such as block ice, flake ice, and tube ice, ferguson's flow ice machine can adjust the
ratio of water solution to ice to obtain the ideal ice temperature and ice concentration.
3. Save labor
Flow ice can be pumped to the freezing point through a hose or pipe.
Greatly save the cost of manual operation.
4. Low energy consumption
Greater contact area, faster cooling rate.Compared with other refrigeration methods, it can save at least 1/3 time.
The temperature difference required for ice making is small. The difference between the evaporation temperature of the
refrigeration system and the freezing temperature of the brine is about 5-6℃ to make the liquid ice, while other ice making
machines need to keep the temperature difference between 10-13℃.
Applications:
seafood, fresh aquatic products, fishing, supermarket ice, food processing industry.

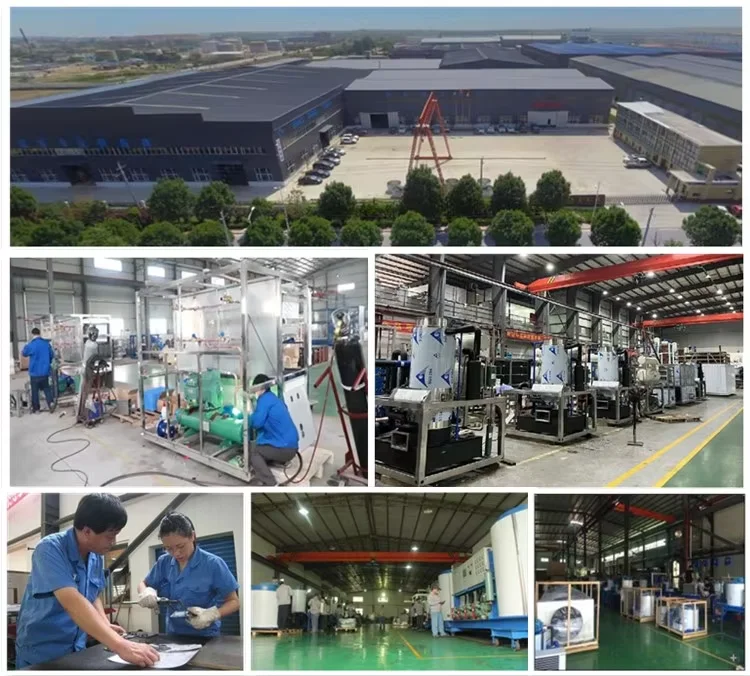

Company Profile
Foshan Fomax Technology Co., Ltd.is located in Foshan, which is an comprehensive enterprise specializing in design,production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine,tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coal mine cooling etc.
